Horizontal Leg

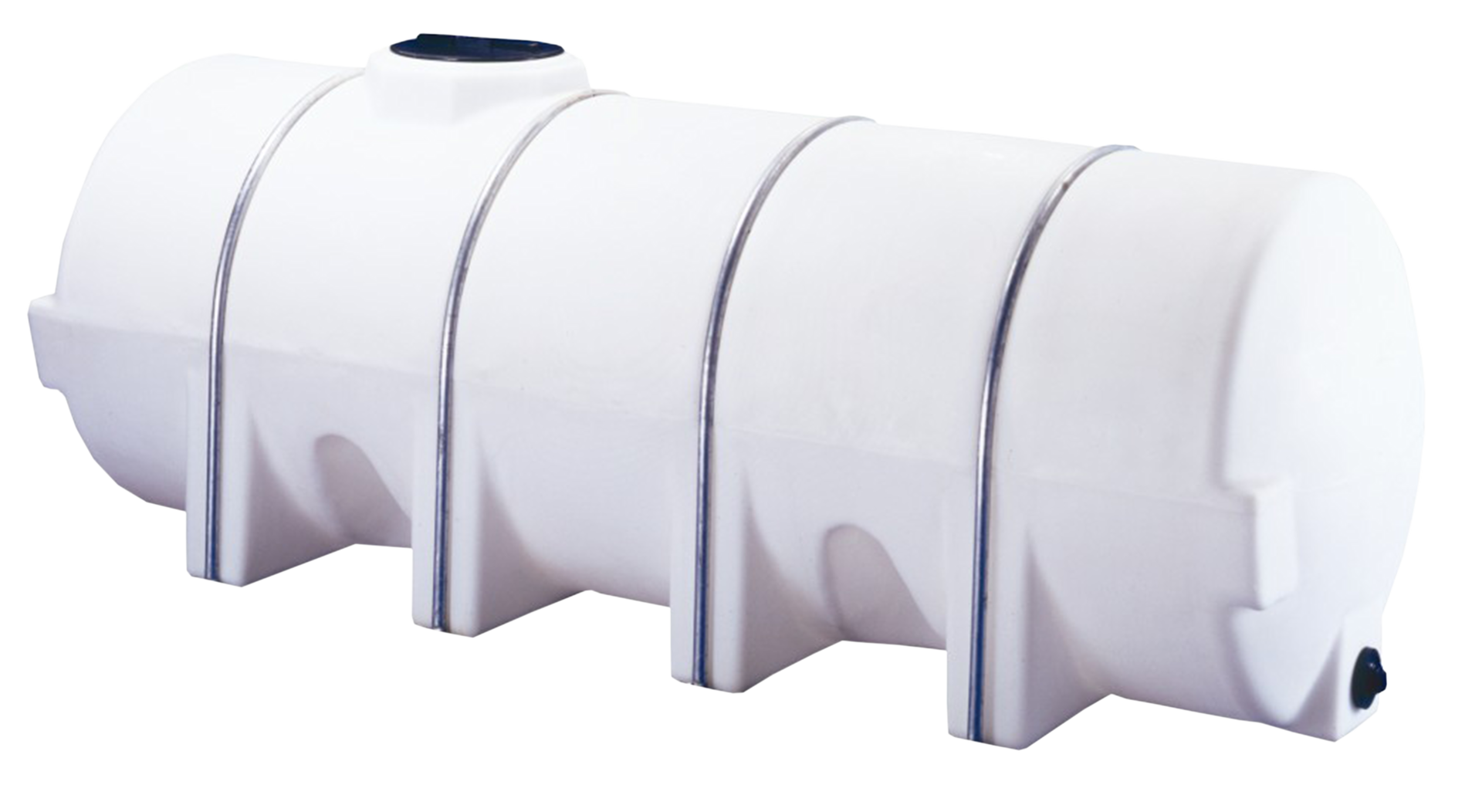

Horizontal Leg Transport Tanks & Bands
Norwesco (download brochure)
| HORIZONTAL LEG TANKS | |||||||
|---|---|---|---|---|---|---|---|
| Part Number | Capacity | Weight | Dimensions | Lids & Fittings | Bands | Price | |
| LNW45223 | 35 gallon | 15 lbs | 23"Dia x 29"Long | 5"Lid / 3/4" Outlet | Optional | $146 | |
| LNW41873 | 55 gallon | 23 lbs | 26"Dia x 26"Long | 5"Lid / 3/4" Outlet | Optional | $239 | |
| LNW45191 | 65 gallon | 27 lbs | 26"Dia x 43"Long | 5"Lid / 3/4" Outlet | Optional | $272 | |
| LNW40298 | 125 gallon | 46 lbs | 35"Dia x 41"Long | 8"Lid / 2"Outlet | Optional | $435 | |
| LNW40299 | 225 gallon | 72 lbs | 41"Dia x 49"Long | 8"Lid / 2"Outlet | Optional | $627 | |
| LNW40217 | 325 gallon | 99 lbs | 43"Dia x 68"Long | 16"Lid / 2"Outlet | Optional | $755 | |
| LNW42016 | 425 gallon | 120 lbs | 54"Dia x 60"Long | 16"Lid / 2"Outlet | Optional | $927 | |
| LNW40181 | 525 gallon | 139 lbs | 54"Dia x 71"Long | 16"Lid / 2"Outlet | Optional | $1,068 | |
| LNW40180 | 725 gallon | 225 lbs | 54"Dia x 101"Long | 16"Lid / 2"Outlet | Required | $1,654 | |
| LNW45209 | 925 gallon | 279 lbs | 65"Dia x 80"Long | 16"Lid / 2"Outlet | Required | $1,926 | |
| LNW40089 | 1025 gallon | 309 lbs | 54"Dia x 139"Long | 16"Lid / 2"Outlet | Required | $2,165 | |
| LNW41875 | 1325 gallon | 430 lbs | 70"Dia x 99"Long | 16"Lid / 2"Outlet | Required | $2,760 | |
| LNW40026 | 1625 gallon | 465 lbs | 68"Dia x 139"Long | 16"Lid / 2"Outlet | Required | $4,056 | |
| LNW42990 | 1800 gallon | 585 lbs | 68"Dia x 146"Long | 16"Lid / 2"Outlet | Required | $3,883 | |
| LNW44047 | 3725 gallon | 1320 lbs | 97"Dia x 145"Long | 16"Lid / 3" Outlet | Required | $8,475 | |
| LNW41879 | 5025 gallon | 1509 lbs | 96"Dia x 190"Long | 16"Lid / 3"Outlet | Required | $14,646 | |
| LNW44314 | 6025 gallon | 1865 lbs | 103"Dia x 193"Long | 22"Lid / 3"Outlet | Required | $19,576 |
| HORIZONTAL LEG TANK BANDS | |||||
|---|---|---|---|---|---|
| Part Number | Tank Compatibility | Weight | Bands Per tank | Price (ea) | |
| LNW60520 | 35 gallon only | 5 lbs ea | 2 Bands (Optional) | $29 | |
| LNW61745 | 55 & 65 gallon | 5 lbs ea | 2 Bands (Optional) | $44 | |
| LNW61744 | 125 gallon only | 11 lbs ea | 2 Bands (Optional) | $62 | |
| LNW60478 | 225 & 325 gallon | 13 lbs ea | 2 Bands (Optional) | $102 | |
| LNW60057 | 425, 525 gallon | 20 lbs ea | 2 Bands (Optional) | $107 | |
| LNW60057 | 725 gallon only | 20 lbs ea | 3 Bands (Required) | $97 | |
| LNW60057 | 1025 gallon only | 20 lbs ea | 4 Bands (Required) | $97 | |
| LNW63282 | 1325 gallon only | 32 lbs ea | 3 Bands (Required) | $149 | |
| LNW60079 | 1625 gallon only | 32 lbs ea | 4 Bands (Required) | $140 | |
| LNW62852 | 1800 gallon only | 32 lbs ea | 4 Bands (Required) | $131 | |
| LNW63653 | 1800 gallon connecting bar | 5 lbs | 1 Bar (Required) | $64 | |
| LNW63284 | 3725 gallon only | 55 lbs ea | 4 Bands (Required) | $501 | |
| LNW63284 | 5025 gallon only | 55 lbs ea | 5 Bands (Required) | $501 | |
| LNW64085 | 6025 gallon only | 50 lbs ea | 5 Bands (Required) | $561 |
